Contour Area is a fixed-axis surface contouring operation used to machine complex three-dimensional surfaces. The operation generates a series of offset toolpaths across a selected surface region, allowing the cutting tool to closely follow the shape of the model while maintaining a constant tool axis orientation.
Contour Area is commonly used as a finishing operation on molds, dies, sculpted parts, and other freeform surfaces. It is particularly effective on shallow or smoothly curved geometry where a consistent surface finish is desired. Ball end mills are frequently used because they can accurately reproduce complex surface shapes with minimal scalloping.

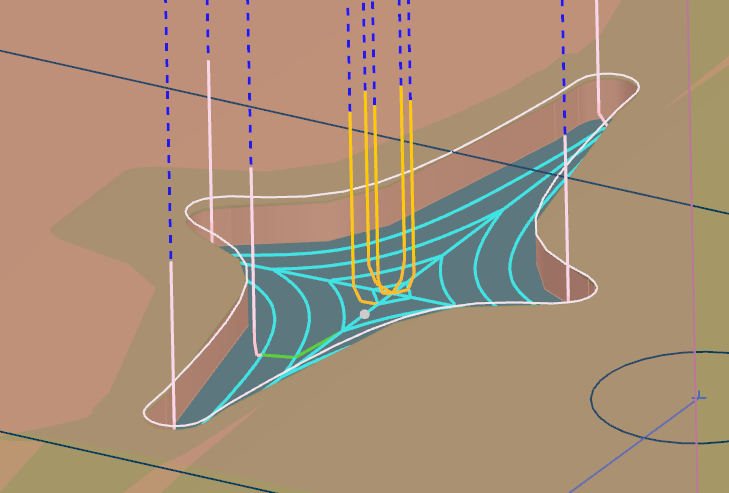

The operation can also be used to machine recessed features with curved bottoms, such as decorative cavities, engravings, and inlay pockets. In these applications, the toolpath conforms to the underlying surface rather than machining the feature to a constant depth. The resulting cavity closely matches the contour of the selected geometry.
Toolpath patterns may be generated as spiral, zig-zag, or one-way passes, depending on the software settings and machining requirements. Surface finish is primarily influenced by cutter geometry, stepover distance, and the curvature of the machined surface.
