Geometric Construction

Geometric construction is the process of creating precise shapes, angles, and dimensions using only basic tools like a compass, straightedge, and protractor, or in digital contexts, precise drawing tools within CAD software. Unlike freehand drawing, geometric construction follows strict rules and methods, relying on the principles of geometry to create accurate figures that maintain their properties under various transformations.

In engineering, drafting, and technical drawing, geometric construction is fundamental for producing and analyzing shapes that are essential to design, such as circles, triangles, polygons, and complex curves. These constructions are used to generate accurate representations of parts, structures, or systems, often serving as the foundation for more complex designs. For example, constructing a tangent to a circle, bisecting an angle, or dividing a line segment into equal parts are common tasks in geometric construction, each requiring specific steps to ensure accuracy.

The discipline of geometric construction has practical applications in various fields, including architecture, mechanical engineering, and manufacturing, where precise shapes and angles are essential to functionality and aesthetic quality. By adhering to geometric principles, designers and engineers create parts and assemblies that fit together correctly, function as intended, and maintain the structural integrity of the design. This process ultimately provides the foundation for both traditional hand-drawn and digitally produced technical drawings, ensuring accuracy and reliability in engineering and architectural work.

Geometric Construction

Bisect a Line (Compass Method)

Bisect a Line (Compass Method)
To bisect a line segment using a compass and a straightedge, follow these steps: Place the compass at one endpoint of the line segment and set the radius to be more than half the segment's length. Draw an arc above and below the line. Without changing the compass setting, place the compass at the other...

Bisect an Angle (Compass Method)

Bisect an Angle (Compass Method)
To bisect a line segment using a compass and a straightedge, follow these steps: Place the compass at one endpoint of the line segment and set the radius to be more than half the segment's length. Draw an arc above and below the line. Without changing the compass setting, place the compass at the other...

Construct a Circle from Three Points

Construct a Circle from Three Points
To construct a circle from three given points using a compass and straightedge, follow these steps: Draw two line segments connecting the three given points. Suppose the points are A, B, and C. Draw segment AB and segment BC. Bisect segment AB: Place the compass at A and set the radius to be more than...

Construct Tangent from a Point – Bisector Method

Construct Tangent from a Point – Bisector Method
Construction of the Tangent Line Identify Key Elements Given a circle with center O and a point P outside the circle, we aim to construct a tangent from P to the circle. Connect P to O Draw the line segment PO, which represents the radial distance from the external point to the circle’s center. Bisect...

Construct a Tangent Line to a Point on a Circle

Construct a Tangent Line to a Point on a Circle
To construct a tangent to a given circle at a specified point on its circumference, follow these steps: Identify Key Elements Let the given circle have center O. Let P be the point on the circle where the tangent will be drawn. Draw the Radius to the Point of Tangency Use a straightedge to draw...

Construct a Triangle from Three Sides

Construct a Triangle from Three Sides
Constructing a Triangle from Three Given Line Segments Using a Compass and Straightedge To construct a triangle when given three line segments (let’s call them A, B, and C), follow these steps: Check the Triangle Inequality: Ensure that the sum of any two segments is greater than the third segment. That is: A+B>CA + B...

Divide a Chart Axis

Divide a Chart Axis
To divide a chart axis into equal segments using a ruler (or scale), follow these steps: Identify the length of the axis that needs to be divided into equal parts. Place a ruler at an angle across the axis, so that the zero mark aligns with the starting point of the axis. Adjust the ruler’s...

Divide a Line into Equal Divisions

Divide a Line into Equal Divisions

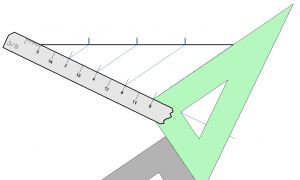

To divide a line into equal segments using a ruler and two triangles, follow these steps: Draw the given line and label its endpoints. Place one triangle with one edge aligned along the given line. Position the second triangle against the first so they can slide together while maintaining a consistent orientation. Align the ruler...

Drop a Perpendicular Line

Drop a Perpendicular Line
To drop a perpendicular line from a given point onto a given line using a compass and a straightedge, follow these steps: Place the compass at the given point (above or below the line) and adjust its radius to reach the line. Draw an arc that intersects the line at two points. Without changing the...

Parallel Line through a Given Point

Parallel Line through a Given Point
Construct a parallel line through a given point. AutoCAD Method Use the OFFSET command. Drag the distance from the point (NOD, CEN for example) and use PER to the original line.

Offset a Given Distance

Offset a Given Distance
Offset a line a given distance. AutoCAD Method

Worksheets – Geometric Construction

Worksheets – Geometric Construction
You will need a compass and two triangles to complete these assignments.
